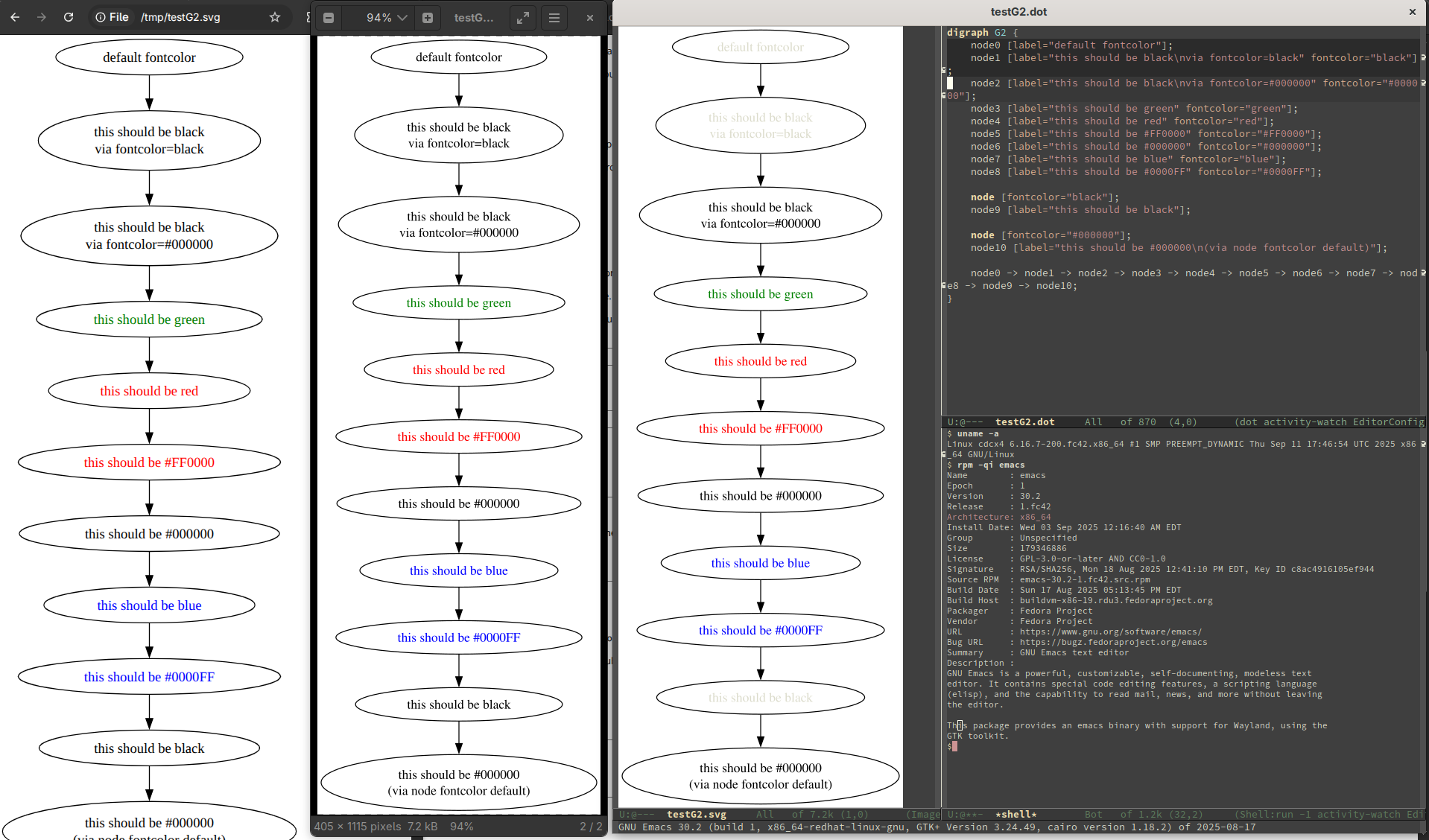

Something is wrong in emacs ("with support for Wayland, using the GTK toolkit") handling of "fontcolor=black", as can be seen with the attached screenshot. The "fontcolor=black" is colored grey-ish, which seems to be some sort of default. The EOG (and google-chrome) rendering of the SVG is correct. Reproducible: Always Steps to Reproduce: 1. create testG2.dot 2. M-x graphviz-turn-on-live-preview 3. write this to testG2.dot buffer: ``` digraph G2 { node0 [label="default fontcolor"]; node1 [label="this should be black\nvia fontcolor=black" fontcolor="black"]; node2 [label="this should be black\nvia fontcolor=#000000" fontcolor="#000000"]; node3 [label="this should be green" fontcolor="green"]; node4 [label="this should be red" fontcolor="red"]; node5 [label="this should be #FF0000" fontcolor="#FF0000"]; node6 [label="this should be #000000" fontcolor="#000000"]; node7 [label="this should be blue" fontcolor="blue"]; node8 [label="this should be #0000FF" fontcolor="#0000FF"]; node [fontcolor="black"]; node9 [label="this should be black"]; node [fontcolor="#000000"]; node10 [label="this should be #000000\n(via node fontcolor default)"]; node0 -> node1 -> node2 -> node3 -> node4 -> node5 -> node6 -> node7 -> node8 -> node9 -> node10; } ``` Actual Results: observe output (see http://xades.com/~martin/proj/bug-emacs-202251021/bugzilla-emacs-svg-render-screenshot-20251021.png ) Expected Results: render colors correctly, like EOG (see http://xades.com/~martin/proj/bug-emacs-20251021/bugzilla-emacs-svg-render-screenshot-20251021.png ) Additional Information: $ uname -a Linux cdcx4 6.16.7-200.fc42.x86_64 #1 SMP PREEMPT_DYNAMIC Thu Sep 11 17:46:54 UTC 2025 x86_64 GNU/Linux $ rpm -qi emacs Name : emacs Epoch : 1 Version : 30.2 Release : 1.fc42 Architecture: x86_64 Install Date: Wed 03 Sep 2025 12:16:40 AM EDT Group : Unspecified Size : 179346886 License : GPL-3.0-or-later AND CC0-1.0 Signature : RSA/SHA256, Mon 18 Aug 2025 12:41:10 PM EDT, Key ID c8ac4916105ef944 Source RPM : emacs-30.2-1.fc42.src.rpm Build Date : Sun 17 Aug 2025 05:13:45 PM EDT Build Host : buildvm-x86-19.rdu3.fedoraproject.org Packager : Fedora Project Vendor : Fedora Project URL : https://www.gnu.org/software/emacs/ Bug URL : https://bugz.fedoraproject.org/emacs Summary : GNU Emacs text editor Description : GNU Emacs is a powerful, customizable, self-documenting, modeless text editor. It contains special code editing features, a scripting language (elisp), and the capability to read mail, news, and more without leaving the editor. This package provides an emacs binary with support for Wayland, using the GTK toolkit. $
Note: toggling between dark mode (which I had originally) and like mode in the GNOME Settings -> Appearance and restarting emacs does not change/fix the behavior. I have not tried restarting Wayland / gdm in light mode, but will try that later and report if that changes the behavior.
> toggling between dark mode (which I had originally) and like mode *light mode
Dark mode and light mode does not have an effect/fix on the problem.
I think there are two issues happening in tandem, here: - GraphViz discards the fill="black" attribute from text nodes when generating SVG (presumably because it thinks that black will always be the default, so it can save a few bytes by leaving it out). - Emacs uses its own default text colour for text, even in SVGs. https://debbugs.gnu.org/cgi/bugreport.cgi?bug=73417 I will make the case to the Emacs developers that image-mode should use a default text colour of black when rendering SVGs, because that’s what the SVG spec says (https://svgwg.org/svg2-draft/painting.html#FillProperty). Meanwhile, a workaround for this issue would be to reset variable graphviz-dot-preview-extension to its default value of "png".
This will be fixed in Emacs 31. https://github.com/emacs-mirror/emacs/commit/2e3ee3e44803849b085a498fd4e64f84243e6c28
Thanks very much!
